特性

This is the latest commission system. There are servo motors for this machine, one is used to control the length of bags, the other is used to control the high speed moving bags of commission system. The method is to convey the bags quickly and the speed is adjustable.

规格表

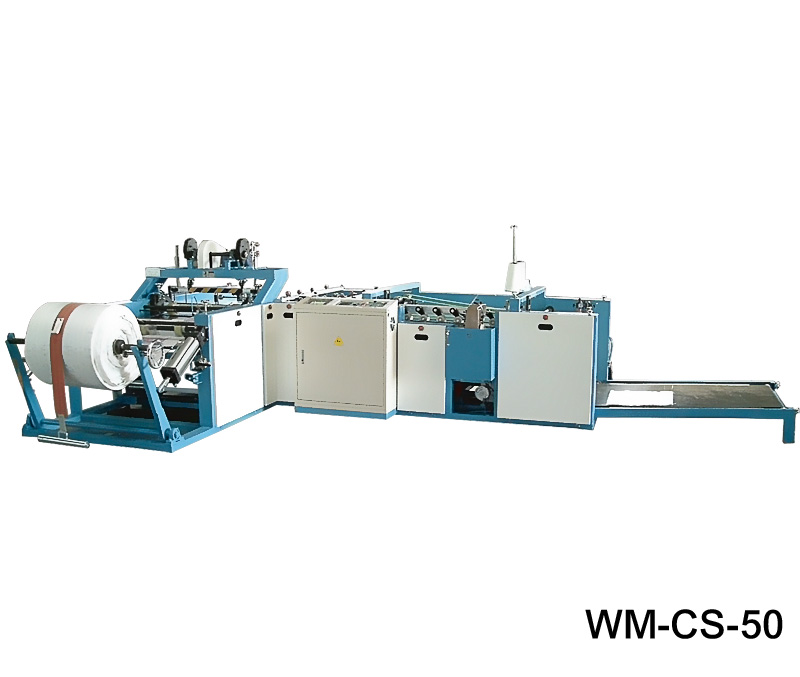

型号	WM-CS-50
特性	全自動裁袋及縫袋
伺服马达控制	2.0kw JAPAN
连续切断	热变频连续刀
缝纫针车	(DKN-3) 1PCS
适用材质	PP/PE 编织袋
产量	35~42pcs(袋/分)
切布长度	550~1250 mm
切布宽度	550~1250 mm
裁切公差	+.- 1 mm
开口	Equipped
每吋针数	3.8~8 (p/mm)
布卷直径	1200 mm
折边宽度	15~25 mm
人力	1 Persons
主传动马达	AC 2HPX1, Servo Motor 2.0KWX1, 1HPX1, 1/4HPX1
耗电量	12.6KW
空压机	3HP X 1UNIT
收料	Counting Stack Type Belt Conveyor
机械尺寸	L7880 x W3880 x H1360mm (N.W 2800Kgs)
装柜尺寸	1X20"尺
